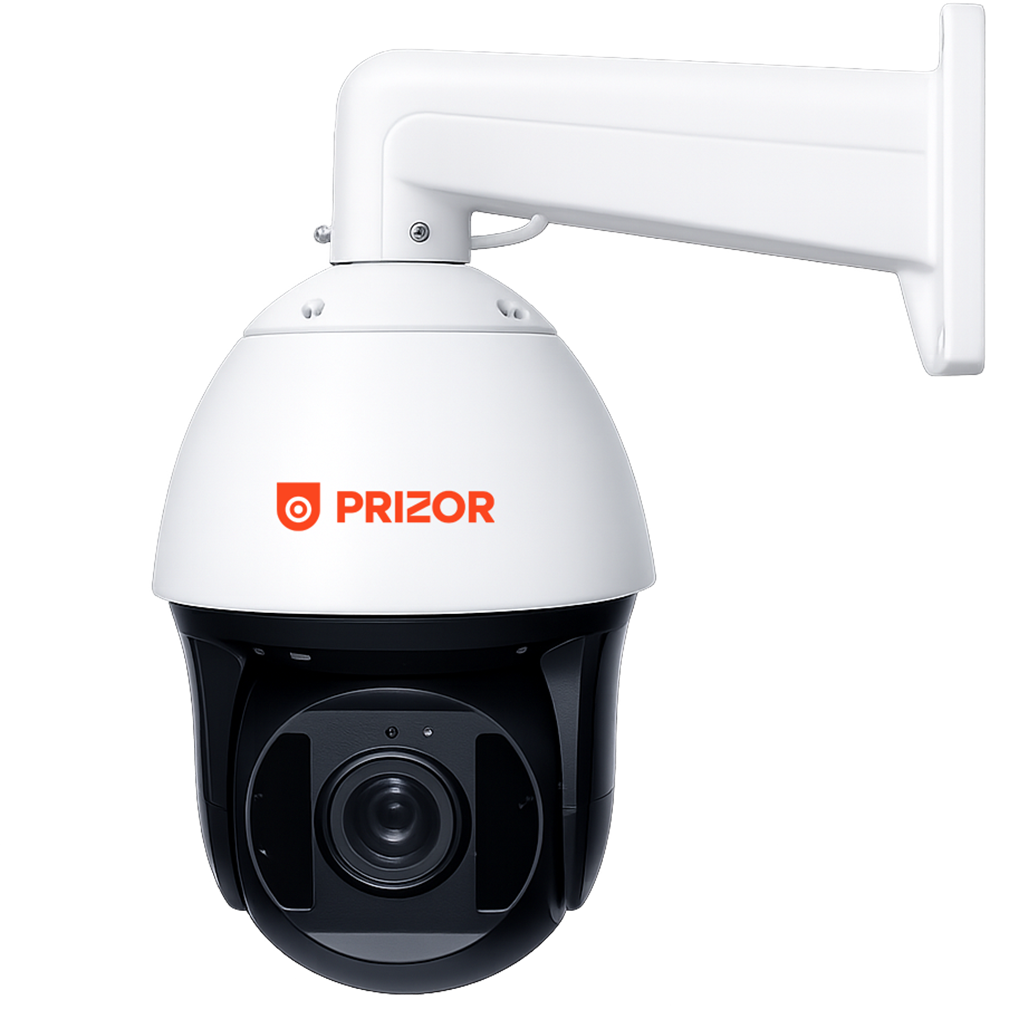

IPPTZ5020X-SD-CW 5MP 20X ZOOM IP PTZ CAMERA
KEY FEATURES
- 5MP 36X ZOOM IP PTZ CAMERA
- 5 MP RESOLUTION
- 7 INCH
- POE PTZ
- HIGH SPEED DOME
- 1/4” SONY SENSOR
- UP TO 2944*1656 HIGHRESOLUTION FULL HD 1080PVIDEO
- SPEED 0.05-200°/S, -15~90° TILT ANGLE OPTICAL ZOOM 20X
- WDR, 3D DNR, HLC, DUAL-ICR
- TRIPLE STREAMS, SMART DEFOG
- TVS 6000V, LIGHTNING/SURGE 4000V PROTECTION, I TEMPERATURE: -40°C-70°C
- IP66 WEATHERPROOF
- IR DISTANCE- 100 TO 120 M
- NIGHT COLORVISION
- SD CARD SUPPORTED
Specifications
MODEL | IPPTZ5020X |
---|---|
IMAGE SENSOR | 1/2.9″ SONY EXMOR |
RESOLUTION | 5 MP |
EFFECTIVE PIXELS | 2944(H)X1656V), 5 MP |
TV SYSTEM | PAL/NTSC |
ELECTRONIC SHUTTER TIME | AUTO: PAL 1/1-1/10000SEC; NTSC 1/1-1/10000SEC |
SYNC SYSTEM | EXTERNAL |
USABLE ILLUMINATION | COLOR 0.1LUX@F1.2,BLACK/WHITE 0.01LUX@F1.2 |
S/N RATIO | ≥52DB |
SCANNING SYSTEM | PROGRESSIVE |
VIDEO OUTPUT | NETWORK |
POE | INBUILT POE |
SD CARD | SUPPORTED |
AUDIO | INBUILT AUDIO |
NIGHT VISION | COLOR NIGHT VISION |
SD CARD | SD CARD SUPPORTED |
LENS
FOCUS LENGTH | 4.3MM~86MM, 20X 3.6MM |
TYPE | HD IR CORRECTED LENS |
DIGITAL ZOOM | 16X |
PIXEL | 5 MP |
INFRARED LED | 5Μ X 18PCS(COLOR-0.02LUXAGC ON & 0LUX IR ON) |
SHUTTER TIME | 1/25-1/10000S |
IR POWER ON | CDS AUTO CONTROL |
IR STATUS | UNDER 10 LUX BY CDS |
ONVIF | SUPPORTS ONVIF 2.4 |
ZOOM SPEED | APPROX.2.6S(OPTICAL WIDE-TELE) |
NETWORK
ETHERNET | 10BASE -T/ 100BASE-TX RJ45 CONNECTER |
PROTOCOL | IPV4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS |
APERTURE RANGE | F1.6~F5 |
PAN RANGE | 360° ENDLESS |
PAN SPEED | PAN MANUAL SPEED 0.05°~400°/S , PAN PRESET SPEED 400°/S |
TILT RANGE | -11°~90°AUTO FLIP |
TILT SPEED | TILT MANUAL SPEED 0.1°-120°/S, TILT PRESET SPEED 0.1°~200°/S |
PROPORTIONAL ZOOM | ROTATION SPEED CAN BE ADJUSTED AUTOMATICALLY ACCORDING TO ZOOM MULTIPLES |
3D POSITION | YES |
PRESET ACCURACY, SCAN | 256, 8 |
CRUISE | 8, UP TO 32 PRESETS PER CRUISE |
FEATURES
P2P | YES, SUPPORTS QR CODE |
POE | SUPPORTS IEEE 802.3AF |
MAIN STREAM | 50HZ 25FPS(1920×1080), 25FPS(1280×960), 60HZ 30FPS(1920×1080), 30FPS(1280×960), 30FPS (1280×720) 25FPS (1280×720) |
SUB STREAM | 50HZ 25FPS(704×576), 25FPS (352×288), 25FPS (176×144) 720*480@25-30FPS, 60HZ 30FPS(704×480), 30FPS (352×240), 30FPS (176×120) 352*288@25FPS |
THIRD STREAM | 50HZ 25FPS (352×288), 25FPS (176×144); 60HZ 30FPS (352×240), 30FPS (176×120) |
IMAGE COMPRESSION | H.265+/H.264,MJPEG, H.264 ENCODING WITH BASELINE,MAIN,HIGH PROFILE |
SMART PHONE | IPHONE, IPAD, ANDROID, ANDROID PAD |
DAY/NIGHT | COLOR IMAGE IN NIGHT/ B&W (IR-CUT ) |
COMPRESSION | H.265+/ H.264/JPEG, SUPPORTS RECORD AVI FORMAT |
IMAGE CONFIGURATION | SATURATION/BRIGHTNESS/CONTRAST /SHARPNESS, MIRROR, 3D NR , WHITE BALANCE, BLC, FLK(FLICKER CONTROL) |
PRIVACY MASKING | 3 RECTANGULAR ZONE |
WDR | YES |
RECORDING MODE | NVR/CMS/WEB |
LANGUAGE | ENGLISH, BULGARIAN, POLISH, FARSI, GERMAN, RUSSIAN, FRENCH, KOREAN, PORTUGUESE, JAPANESE, TURKISH, SPANISH, HEBREW, ITALIAN |
HOUSING | METAL BODY, IP66 |
OPERATION TEMPERATURE | -20℃ ~ +60℃ RH95% MAX |
STORAGE TEMPERATURE | -20℃ ~ +60℃ RH95% MAX |
POWER SOURCE | DC12V 4A INDEPENDENT EXTERNAL POWER ADAPTER, 25W MAX |
WEIGHT | 3.5KG (IP PTZ ONLY); 5KG (WITH PACKING BOX) 300G |
